Code: YE3V-YXV-2XY CU
CU: IEC 60228 CLASS 1 & 2
U: Solid Conductor
R: Stranded Conductor
Standarts
IEC 60 502-1 VDE 0276-603
Technical Data
Max operating temperature: 90 0C
Short circuit temperature: 250 0C ( max. 5 sn. )
Rated Voltage : 0,6 / 1Kv
Application
Used as energy, utility and lighting cables for outdoor installations underground or in cable ducts. It is suitable for high temperature conditions and also it provides better insulation.

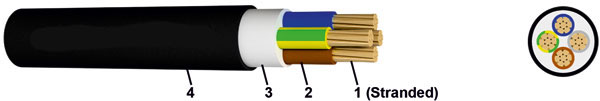

Construction:
1- Solid or stranded copper conductor
2- XLPE insulation
3- PVC filter
3- PVC sheath
|
BOYUT VE AĞIRLIKLAR ( DIMENSIONS AND WEIGHTS ) |
ELEKTRİKSEL ÖZELLİKLER
(ELECTRICAL PROPERTIES) |
|||||||
| Tip
Type |
Nominal Kesit
Nominal cross-section |
Dış Çap (Yaklaşık)
Overall Diameter (approx.) |
Net Ağırlık (yaklaşık)
Net wieght (apprx.) |
İletken DC Direnci 20 0C'de max.
DC Condusctor Resistance at 20 0C |
Akım Taşıma Kapasitesi
Current Carrying Capacity |
|||
| Toprakta 20 0C'de
In ground at 20 0C |
Havada 30 0C'de
In Air at 30 0C
|
|||||||
| A | A | |||||||
|
mm2 |
mm |
kg/km |
ohm/km |
OOO |
O°O |
OOO |
O°O | |
| N2XY | 5x1,5 | 12,73 | 236,2 | 12,10 | - | - | - | - |
| 5x2,5 | 13,69 | 282,95 | 7,41 | - | - | - | - | |
| 5x4 | 14,09 | 829,47 | 4,61 | - | - | 64 | 46 | |
| 5x6 | 15,44 | 408 | 3,08 | - | - | 79 | 58 | |
| 5x10 | 21,11 | 829,47 | 1,83 | - | - | 106 | 79 | |
| 5x16 | 21,61 | 975,09 | 1,15 | 139 | 115 | 128 | 102 | |
| 5x25 | 25,76 | 1397 | 0,727 | 179 | 149 | 173 | 139 | |
| 5x35 | 29,34 | 1806 | 0,524 | 213 | 178 | 212 | 170 | |
| 5x50 | 33,01 | 2369 | 0,387 | 251 | 211 | 258 | 208 | |
| 5x70 | 38,34 | 3365 | 0,268 | 307 | 259 | 328 | 265 | |
| 5x95 | 43,06 | 4586 | 0,193 | 366 | 310 | 404 | 326 | |
| 5x120 | 48,90 | 5516 | 0,153 | 416 | 352 | 471 | 381 | |
| 5x150 | 54,40 | 6940 | 0,124 | 465 | 396 | 541 | 438 | |
| 5x185 | 62,00 | 86,45 | 0,0991 | 526 | 449 | 626 | 507 | |
| 5x240 | 69,70 | 11126 | 0,0754 | 610 | 521 | 749 | 606 | |
