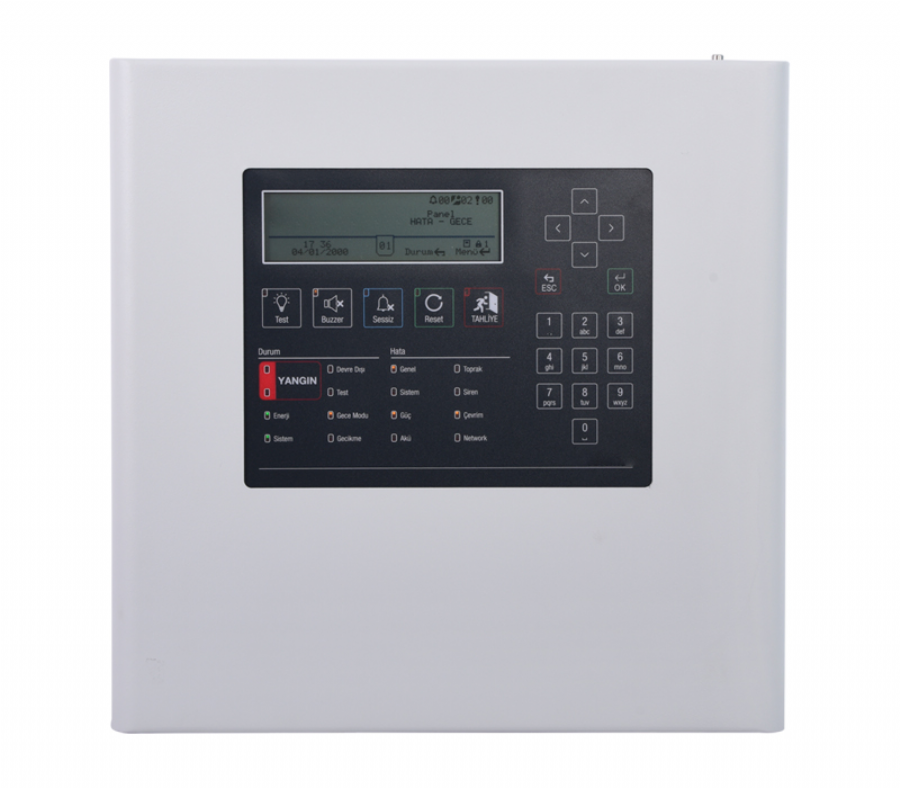

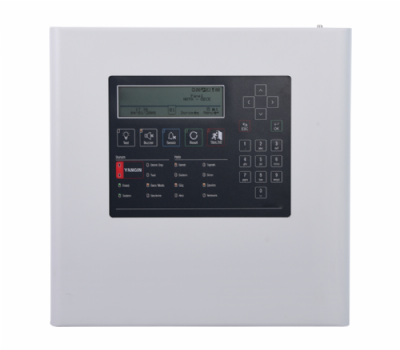

GENERAL SPECIFICATIONS
* EN 54-2 AND EN 54-4 Certified
* Technician and user friendly; easy installation, programming and operation specifications
* 1 Loop capacity, (Extension to 2 Loops via TFC-1201 Loop Board)
* Cable distance up to 2,5 Km per loop
* 240 device addressing capacity on each loop
* 72 zones that can be individually programmed
* Capacity up to total of 7.680 addressed devices and 1.152 zones by network structure (Using optional TFC-1208 Network module)
* Easy to read, 240*64 wide LCD graphic display and user-friendly interface
* Display screen customizable with company logo, contact information, images, etc.
* Network structure that can be extended up to 16 panels and operate as a single system via RS-485 based TdNET communication protocol developed specifically by Teknim engineers (using optional TFC-1208 Network Module)
* Same level of accessibility and command sending to all panels via peer-to-peer communication network feature
* Uninterrupted and reliable data communication between loop card and end-units over power line thanks to FlashLink communication protocol developed by Teknim
* Advanced panel programming and user-friendly system configuration via TFY-1000 software installed on a computer to be connected to panel over TCP/IP Ethernet (LAN/WAN).
* Graphic monitoring of 1 panel or a network of up to 16 panels as a single system on a map as well as managing some of the features such as evacuation, reset, siren/buzzer silencing via TFY-2000 monitoring Software developed specifically by Teknim software engineers.
* Remote panel monitoring and management via TFP-1240/TFP-1245 REPEATER PANEL WITH ANALOG ADDRESS connection (1 Km cable distance).
* Storing up to 12.000 events of alarms, errors and warnings with time-stamp on the memory.
* Exact identification of possible disconnection points on the line via bi-directional, smart loop control feature.
* In case a device on a loop is removed and reconnected on the line, missing device warning is quickly and automatically reset without further action on the panel.
* 2 each independent and delay addressable /monitored siren output. Connection up to 60 sirens without external supply if used with Teknim TFS-3192 siren.
* Detailed viewing of voltage/current information of panel and loop on the graphic LCD display of panel
* Night/day operation mode that can be programmed automatically or by user in order for alarm verification
* Siren delay time individually programmable for each zone
* Automatic Alarm of devices connected to the system, informing and prompting user via LCD screen, enabling easy inclusion of devices into the system
* Supports Class A and Class B connections, thus new devices can be easily included in the loop via star connection in mandatory cases required for the project
* Multiple language support
