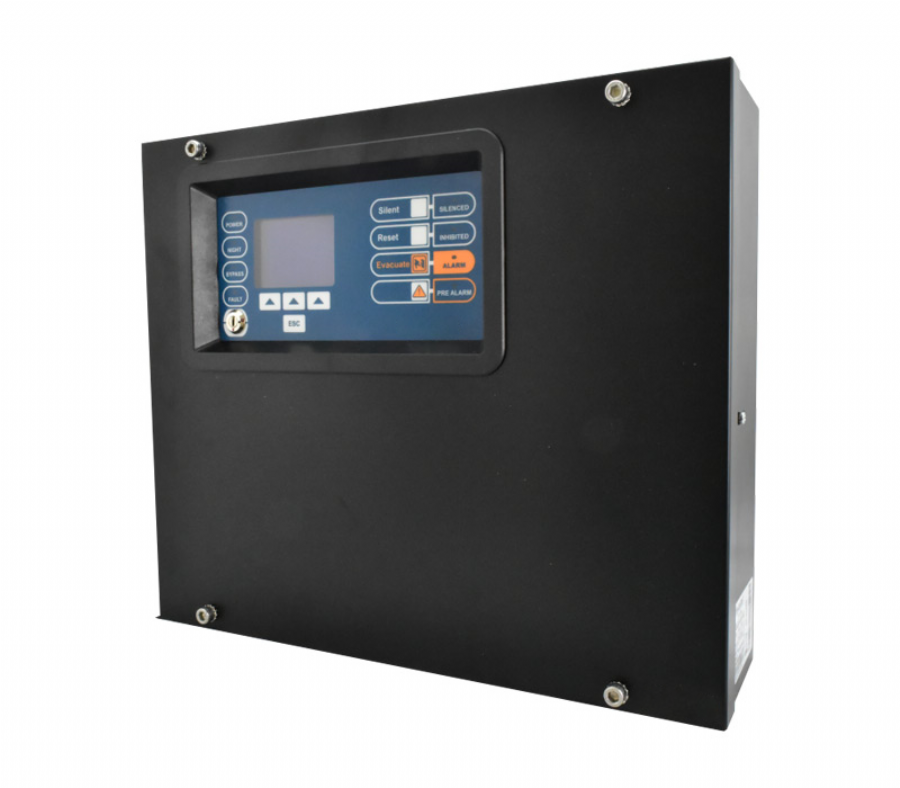

8 Zones, Conventional Fire Alarm Panels

GENERAL FEATURES

* 24V, 8 zone, can be increased to 32 zone
* Easy to use with large graphic LCD
* Has status, alarm and trouble LEDs
* Zone names can be entered
* 100 pcs event memory with date, time and zone information
* Night mode (automatic or manual)
* Pre alarm mode (can be set for each zone, can be cancelled from panel)
* Smart battery charger, long battery life (Able to see battery voltage on display)
* Plug & Play expansion modules, no programming necessary.
* EOL supervised siren output and zone inputs
* Zone type can be selectable as button or detector
* Zone test feature
* 6 ~ 25Vadjsutable power output with automatic fuse
* 1 pc NC/NO customizable fire relay (Button alarm, detector alarm etc.)
* 1 pc NC/NO customizable trouble relay (Mains failure, zone trouble, battery trouble etc.)
* Bypass feature, ‘’BYPASS’’ led on the front panel, bypassed zones can be seen on LCD
* Key system to determine authorization level, Warning messages on screen when key needed
* Easy to understand front panel, menu system for easy programming
* Support for multi-language
* Switched power supply
* Metal box
* Ready places in box for expand modules
* Compact, small dimensions
* Used with 2 pc of 12V 7Ah battery
