Used in low attenuation requied systems such as indoor CATV, CCTV distribution and SATV satallite systems as connection cable.

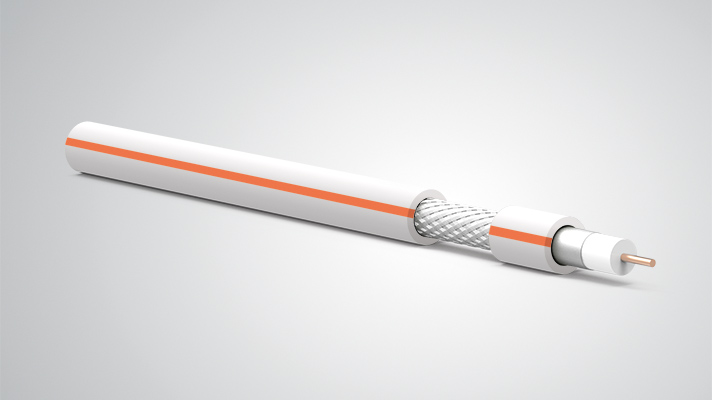

| Cable Construction | |
| Inner Conductor | Cu |
| Conductor Diameter | 1 x 1,02 mm |
| Insulation | FPE |
| Insulation Diameter | 4,57 mm |
| Screen Tape | Al-Pes 100% |
| Braid | Braid with aliminum wires |
| Outer Sheath | PVC |
| Sheath Diameter | 6,8 mm |
| Colour of Sheath | White-Orange |
| Approx Weight | 49 kg/KM |
| Standart Packing | 100 – 500 – 1000 m |
| Electrical Parameters | |
| Capacitance | 53 pf/m |
| Impedance | 75±3 OHM |
| Velocity | 0,82 |
| Insulation Resistance | >2000 MOHM KM |
| Working Tempeture | -30°C + 70°C |
| Working Voltage | 1,3 kv |
| Test Voltage | 3,0 kv |
| Min.Bending Radius | 20 x D |
| Attenuation | |
| 100 MHz | 7,00 dB/100 m |
| 200 MHz | 9,70 dB/100 m |
| 400 MHz | 14,10 dB/100 m |
| 600 MHz | 16,90 dB/100 m |
| 800 MHz | 19,60 dB/100 m |
| 1000 MHz | 23,50 dB/100 m |
