Ye3ov-2xry-yvz2v » ALTINTOPRAK ELECTRIC

Code: YE3OV-2XRY-YVZ2V- CU

CU: IEC 60228 CLASS 1 & 2

U: Solid Conductor

R: Stranded Conductor

Standarts

IEC 60 502-1 VDE 0276-BS 5467

Technical Data

Max operating temperature: 90 ⁰C

Short circuit temperature: 250 ⁰C ( max. 5 sn. )

Rated Voltage : 0,6 / 1Kv

Application

Used under heavy operating and installation conditions. Suitable for laying underground. Suitable for high temperature conditions and also it provides better insulation.

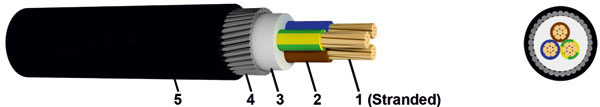

Construction:

1- Solid or stranded copper conductor

2- PVC insulation

3- PVC filter

4- Galvanised round steel wire armour

5- PVC sheath

BOYUT VE AĞIRLIKLAR ( DIMENSIONS AND WEIGHTS )				ELEKTRİKSEL ÖZELLİKLER (ELECTRICAL PROPERTIES)
Tip Type	Nominal Kesit Nominal cross-section	Dış Çap (Yaklaşık) Overall Diameter (approx.)	Net Ağırlık (yaklaşık) Net wieght (apprx.)	İletken DC Direnci 20 ⁰C'de max. DC Condusctor Resistance at 20 ⁰C	Akım Taşıma Kapasitesi Current Carrying Capacity
Tip Type	Nominal Kesit Nominal cross-section	Dış Çap (Yaklaşık) Overall Diameter (approx.)	Net Ağırlık (yaklaşık) Net wieght (apprx.)		Toprakta 20 ⁰C'de In ground at 20 ⁰C	Havada 30 ⁰C'de In Air at 30 ⁰C
	mm²	mm	kg/km	ohm/km	A	A

N2XRY
	3x1,5	14,0	350	12,1	30	24
	3x2,5	15,0	405	7,41	40	32
	3x4	16,0	455	4,61	52	42
	3x6	16,8	560	3,08	64	53
	3x10	18,5	770	1,83	86	73
	3x16	21,0	1060	1,15	111	96
	3x25	25,2	1770	0,727	143	130
	3x35	29,6	2225	0,524	173	160
	3x50	31,2	2700	0,387	205	195
	3x70	37,9	3830	0,268	252	247
	3x95	42,0	4850	0,193	303	305
	3x120	45,0	5900	0,153	346	355
	3x150	52,0	7450	0,124	390	407
	3x185	56,0	9000	0,0991	441	469
	3x240	60,0	11200	0,0754	511	551
	4x1,5	14,0	370	12,1	30	24
	4x2,5	15,0	440	7,41	40	32
	4x4	17,0	525	4,61	52	42
	4x6	18,0	750	3,08	64	53
	4x10	20,0	1005	1,83	86	73
	4x16	24,0	1490	1,15	111	96
	4x25	28,0	2040	0,727	143	130
	4x35	31,0	2555	0,524	173	160
	4x50	35,0	3250	0,387	205	195
