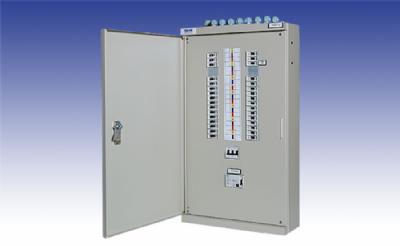

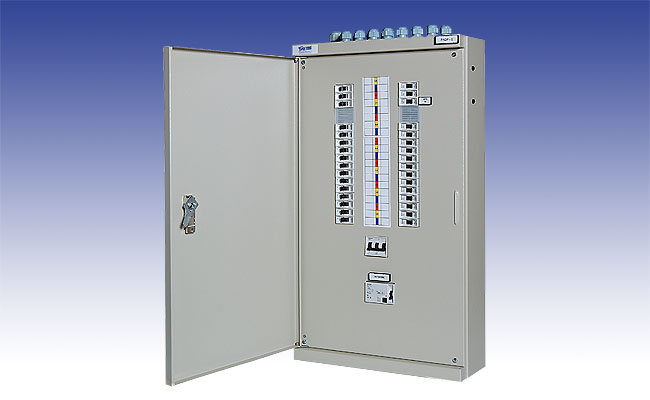

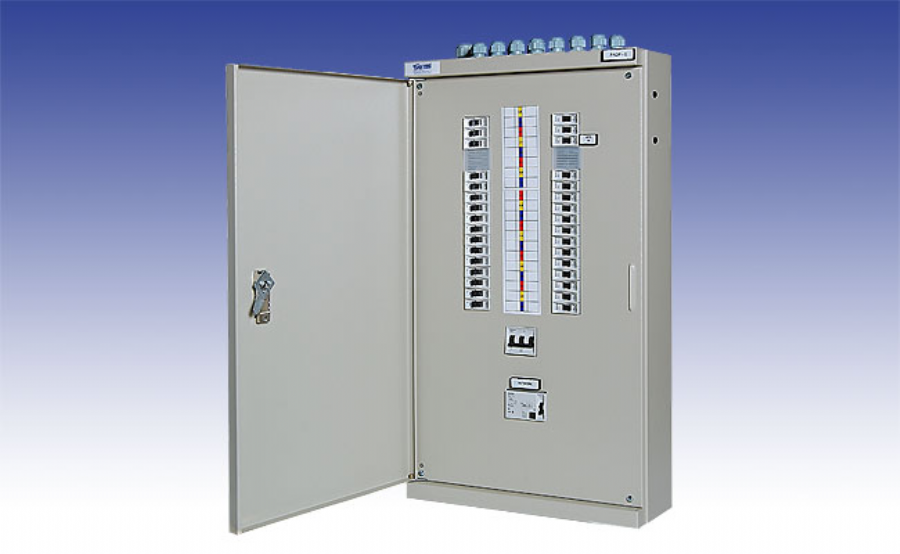

Distribution Board

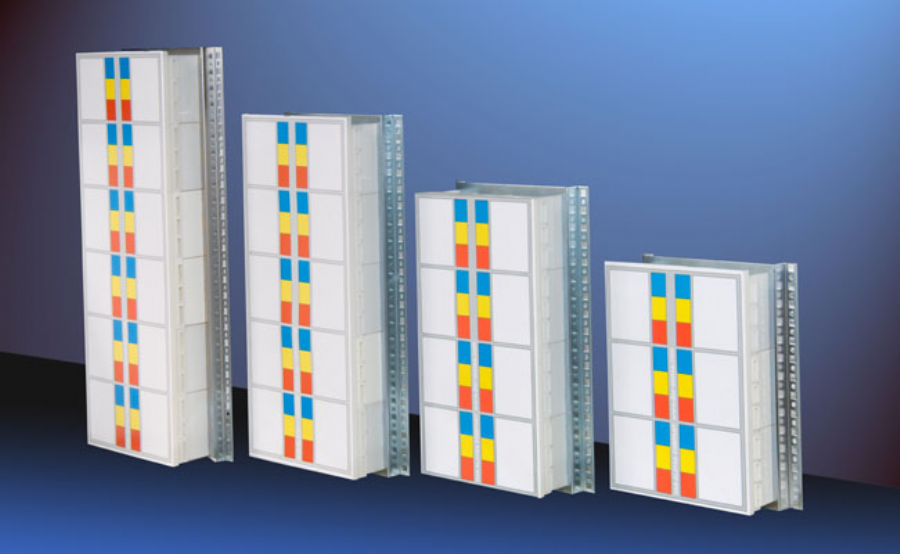

Fully Insulated 250 A 415 V AC Busbar System
  • 30 kA 1s Busbar short circuit withstand( ICMET certified)
  • Conformity to BSEN/EN/IEC 60439-1 Form 1 - 4 Panel Construction
  • 18mm outgoing terminal centers compatible for most major manufacturers of MCBs (6A to 100A)
  • Incoming interconnectors at 35mm terminal centers competible to direct connection of MCCBs up to 250A
  • One-piece copper busbar
  • Maintenance free
  • Colour coding for all connections terminals as standard
  • Plastic protective cover for spare / unused outgoing terminals
  • Option for tin coating . Economic solution for distribution system
  • Ergonomic design

Technical Features
  • Colour: Ral 7032 W electrostatic powder coating
  • Foamed in door polyurethane sealing gasket

Standard Features
  • Installed copper busbar system; ready to assembly (without MCB's and MCCB)
  • Neutral and earth terminal bar
  • Adjustable fittings for most popular manufacturers of standard MCBs (6A to 100A)
  • Sheet steel enclosure, door and cover plates
  • Top and bottom gland plates
  • Lockable doors with 200° concealed hinges
  • Left or right handed door
  • Standard colour coding for all connections terminals

Optional Features
  • Transparent door (upon request)
  • Special colour (upon request)
  • Special sizes (upon request)
  • Special mounting plate (upon request)
  • Pre-punching (upon request)
